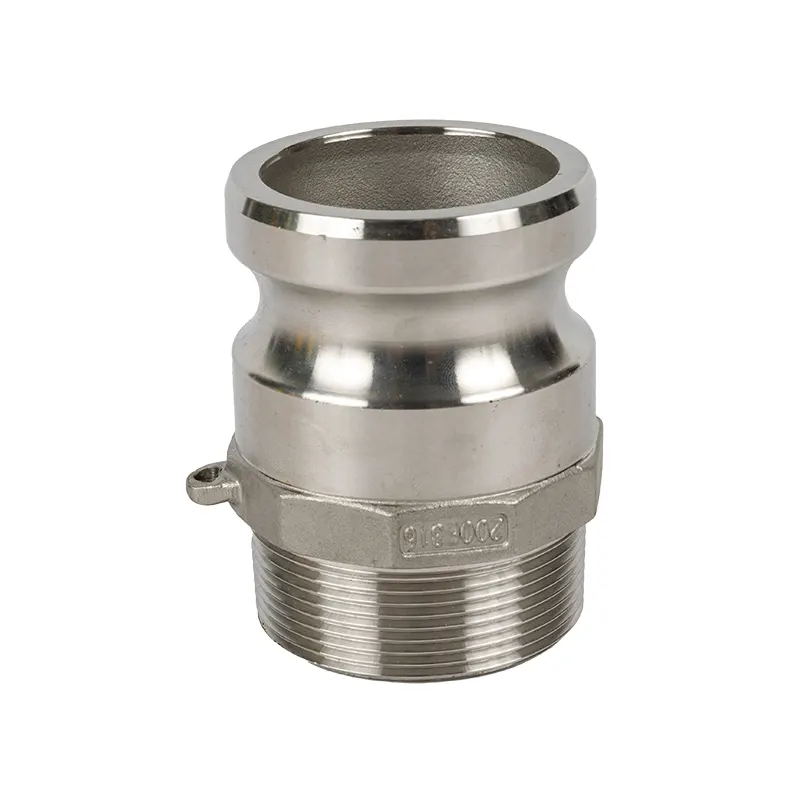

Stainless Steel Camlock Coupling Type F

For Stainless Steel Camlock Coupling Type F XunChi®, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our Stainless Steel Camlock Coupling Type F has been well received by many customers and enjoyed a good reputation in many countries. NingBo ZhenHai XunChi Hardware & Machine Co., Ltd. Stainless Steel Camlock Coupling Type F have characteristic design & practical performance & competitive price, for more information on the Stainless Steel Camlock Coupling Type F, please feel free to contact us.

Send Inquiry PDF DownLoad

Product Description

Stainless Steel Camlock Coupling Type F XunChi®
Standard: Our Camlock Fitting are made to standard of A-A-59326 (previously called MIL-C-27487) or DIN 2828.
Casting method: Investment casting
Sizes available: From 1/2″ to 8″

Description:

● Body material：Stainless steel 316 or 340
● Handles &pins：Stainless steel
● Gaskets：Buna-N, EPDM,PTFE &food grade silicone gasket
● The thread of camlock fittings is BSP, BSPT, NPT, G (ISO 228.1), and R (DIN2999).
● Working pressure:50-250 Psi( depending on size and temperature)
● Manufacture method：precision casting

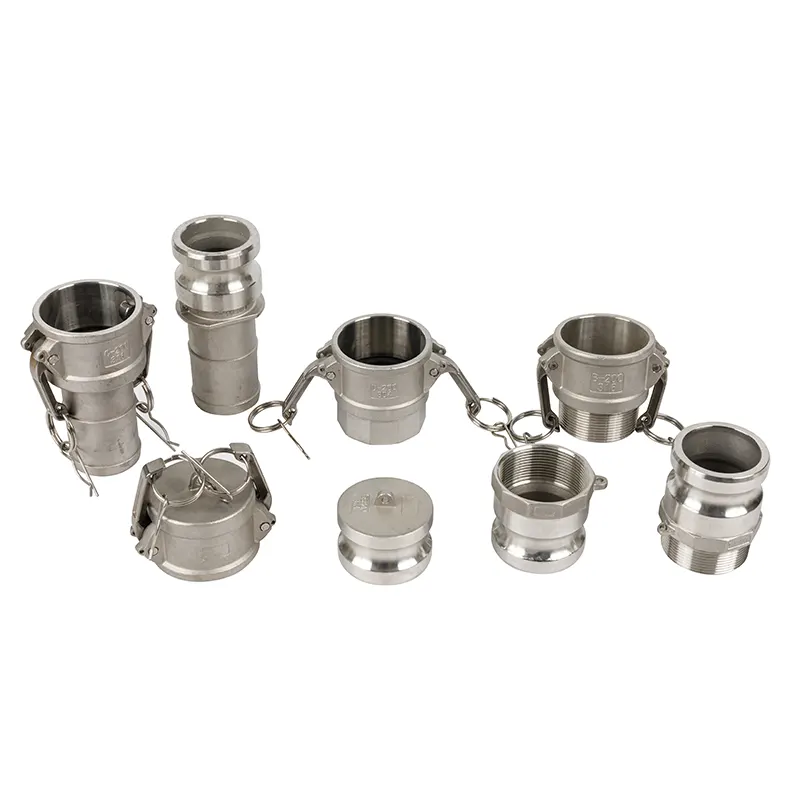

The use and connection way of cam and groove couplings: Type A camlock can usually be used with D type, C type, DC type. （ Dust Cap ） To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
