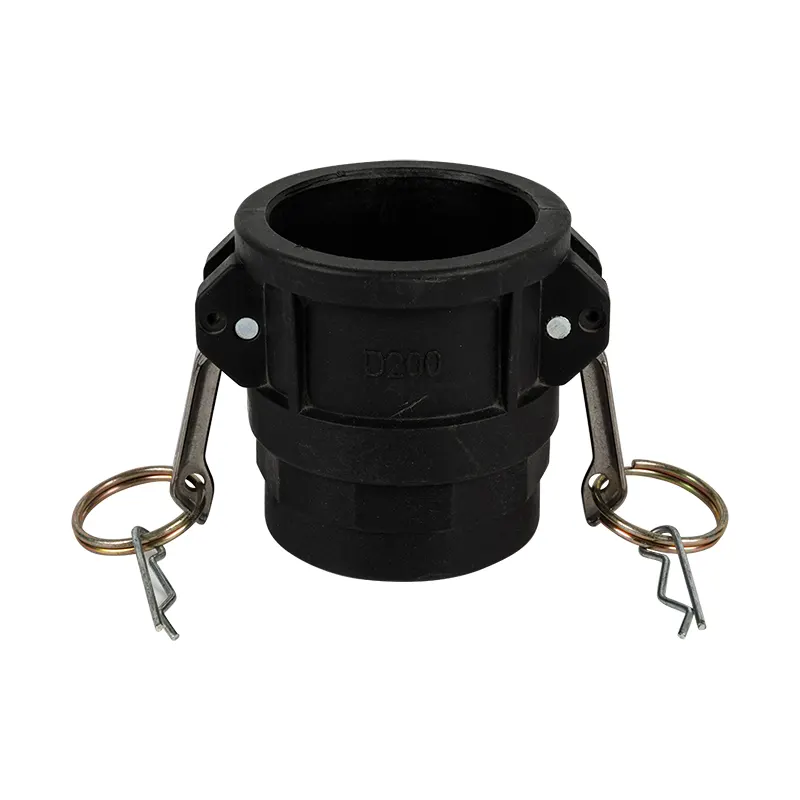

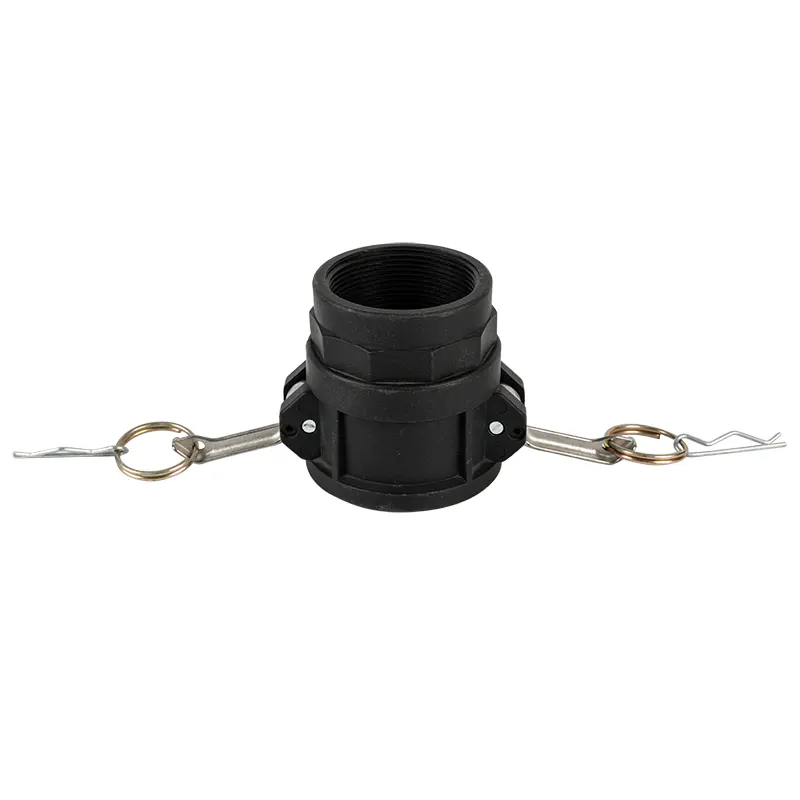

PP Camlock Coupling Type D

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality PP Camlock Coupling Type D XunChi®. We look forward to cooperating with you.

Send Inquiry PDF DownLoad

Product Description

Male Adapter With Female Thread
Product Name: PP Camlock Coupling Type D XunChi®
Material:Polypropylene
Sizes:1/2″-4″
MOQ: 50 PCS
Customizable contents: sizes, logo
Certificates: CE，ISO9001:2015
Competitive price
To learn more and get a quote, please leave your requirements on the form below.

Description:

Body materials: Polypropylene
Handle: stainless steel
Gaskets：Buna-N (NBR), EPDM
The thread of camlock fittings are BSP,BSPT,NPT
SIZE：1/2″to 4″
Pressure :50-100 Psi( depending on size and temperature)
Operating temperature :-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method：Injection molding
The use and connection way of cam and groove couplings: Type A camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
