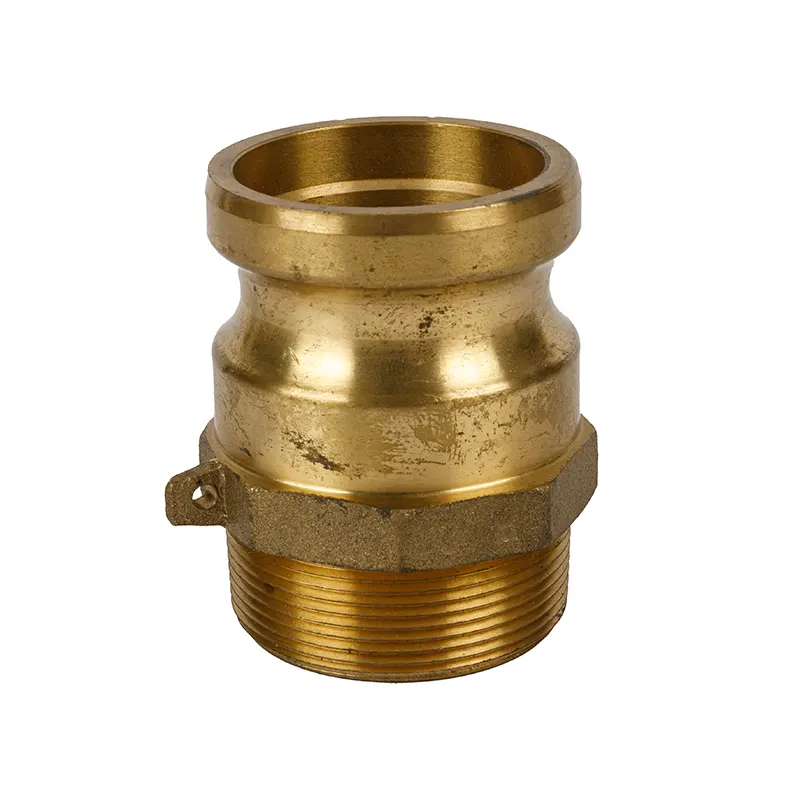

Brass Camlock Coupling Type F

Introduction：

Brass cam and groove coupler &adapter are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″to 6″.Camlock coupling provides a simple and reliable way to connect and disconnect the hose. During installation, no tools are needed, and the handle can be pressed by hand, which can save time, tools and manpower. Brass camlock suitable for conveying water, coolant, hydraulic oil, gasoline and petroleum products.

Product Name: Brass Camlock Coupling Type F XunChi®

body materials: Brass
handle: Brass & stainless stee
Gaskets：NBR, EPDM, Viton, PTF
Safey Pin: Steel
The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
SIZE：1/2″to 6″
pressure :75-250 Psi( depending on size and temperature)
 Operating temperature :-40 to 145℃
Manufacture method：Forging and casting
